DIY Replacing RV Door Locks

Image Caption:

There are a couple of things that have driven RVers crazy over the years. If the RV has two or more entry doors, separate keys are needed for each, plus there are compartment and hatch keys. And if the handles or tumblers haven’t been upgraded, it’s likely the old standby CH751 key is used for locking and unlocking the compartments. The CH751 key has been in use for the past 40 or more years, and there are millions of them in distribution, which means that anyone with the key can enter the compartments and “go shopping.”

RV Locks and More

The solution is one easy project, thanks to RV Locks and More, the retail arm of Global Link Distribution and Creative Products Group (CPG), lock suppliers to many RV manufacturers. Global Link’s and CPG’s technology allows the tumblers in its locks to be easily removed and changed, and unlike in some locks, both the dead-bolt and handle tumblers can be changed by using a combination of the proper key and the re-key tool, which the company provides.

If your RV has square-top keys for the entry doors, the RV Locks and More tumbler replacement may work for you. If not, it’s easy to change the lockset to a newer design that will allow use of the keyed-alike system. The company offers replacement paddle locks and twist-cam locks for most compartment doors that fit the cylinder kits. Cams are available in four lengths, and the throw arm from the original lock is reused.

Fitment exceptions include certain shallow locks, like the ones used to conceal a leveling-jack control panel or outside shower. Since there’s typically not enough room for the deeper cam, this lock can be left as is, and even though it usually uses a CH751 key, easy access doesn’t lead to anything thieves are interested in stealing.

The key system provides 90 different combinations, reducing the chance that someone will have access to your RV. Cylinders are available with or without master-key access, which gives dealers entry when the internal dead bolt isn’t locked.

ONE-KEY RV

A keyed-alike upgrade was tested on a 2015 Keystone Montana. The fifth-wheel’s entry doors had Global Link locks, but the other locks were different brands. The cylinders on the original entry locks could have easily been replaced, but we opted to upgrade to larger pull handles. Since the paddle locks on the compartments were a different brand, they were changed along with the CH751-keyed locks.

Two Ultra M Pro pull-handle locks, five slam-latch paddle locks, two cam locks, and the cylinder replacements were installed in less than two hours, with no modifications to any door. If your RV has full-body paint, replacing the paddle locks may require some body-shop time for touch-ups, but the matte black perfectly matched the originals on the Montana fifth-wheel.

Ultra M Pro Locks benefit from a larger handle to grip and pull to enter. Only one side of the handle pulls out, but once acclimated, it’s a great feature. The locks don’t have a separate dead-bolt throw like the ones they replaced but instead have an interesting internal dead bolt that locks from within.

Replacements were installed for the original Kenco slam-latch locks, but models are available for other brands, all at different price points. Compression latches for toy haulers and hybrids are also available. Cylinders run $7.99 each if you’re replacing them in existing Global Link locks but are included and installed when ordering new locks from the RV Locks and More website. Each cylinder comes with two keys; LED-lighted keys ($6.99 each) are also available. Lastly, if you’re changing any cylinders in existing locks, you’ll need to rent the re-key tool. There is a $50 charge up front; $40 is reimbursed upon return of the key. This is done for security reasons.

The entire project cost $445, but we would have saved $158 by keeping the original entry-door locks. The most expensive part was replacing the five slam-latch paddle locks, which ran just under $240. If better security and the convenience of one key sounds good, then this easy DIY project is well worth the effort and expense.

Global Link’s new electronic RV lock with a pull handle, the Ultra E Pro, offers the benefits of a built-in touchpad and reprogrammable four-digit lock/unlock code for keyless entry, along with the keyed-alike feature.

RV.COM

Global Link lock cylinders can be replaced using the keys for the new cylinders and the re-key tool (yellow fob), which can be rented on the RV Locks and More website. On the original entry-door lock, the upper or handle cylinder has an M for “master” so dealers can access it, and the other cylinder is for the dead bolt, which cannot be unlocked via a master key.

RV.COM

Using the re-key tool after the original key is used to unlock the entry door, the cylinder is easily removed.

RV.COM

Using the re-key tool after the original key is used to unlock the entry door, the cylinder is easily removed.

RV.COM

The replacement cylinder is installed with the new key. This process works with all Global Link locks.

RV.COM

The original entry locks were replaced with Global Link’s Ultra M Pro Locks. They feature an internal dead bolt and an arching pull-handle release, and fit in the same cutout as the original locks.

RV.COM

Taking off the original door locks was easy: the inside screws and inside assembly were removed first, then the two rim screws and outer assembly were removed.

RV.COM

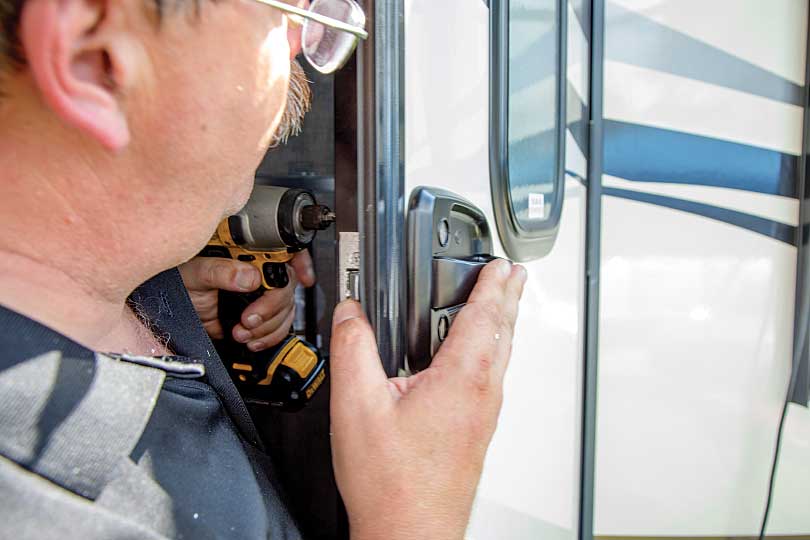

Installing the new locks takes a little finesse to get everything lined up correctly. Replacement locks were ordered with the keyed-alike cylinders already in place.

RV.COM

Ultra Pro M Locks have a lock throw for the internal dead bolt as well as an emergency release in case the door has been locked from the outside while someone is inside the RV. Simply sliding the bar to the left disables all locking mechanisms, allowing easy egress. It is impossible to close the door with the dead-bolt lock engaged.

RV.COM

The locks are brand specific and fit precisely in the same spots as the originals.

RV.COM

The locks are brand specific and fit precisely in the same spots as the originals.
